ACROLINE™ Systems

Anchored thermoplastic lining

Anchored semi-finished thermoplastic sheet available in 4 thermoplastic polymers for varying chemical and thermal environments.

Features

• Prefabricated sheet can be shop-fabricated into a variety of shapes for placement at sight

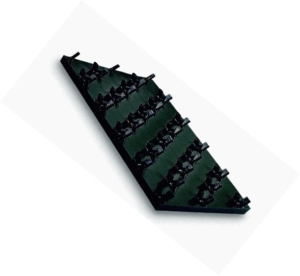

• 39 V-shaped anchors per square foot (420 per sm) integrally formed into the sheet
• Integrated v-shaped anchors on back of sheet mechanically lock the liner into the concrete
• Crack-bridging
• Fast refurbishment turnaround by using prefabricated sections
• Attach to concrete formwork. Suitable for new construction or retrofits
• Spark testable for seam verification
• Available in 3-mm and 5-mm thicknesses
• Available in HDPE, PP-R, PVDF and ECTFE polymers

Uses

Provides a chemical-resistant barrier to protect concrete structures from chemical attack. Provides a leak-tight barrier to contain environmentally hazardous materials.

• Trenches
• Manholes and lift stations
• Sumps
• Process vessels
• Containment areas
• Storage tanks
• Foundations
